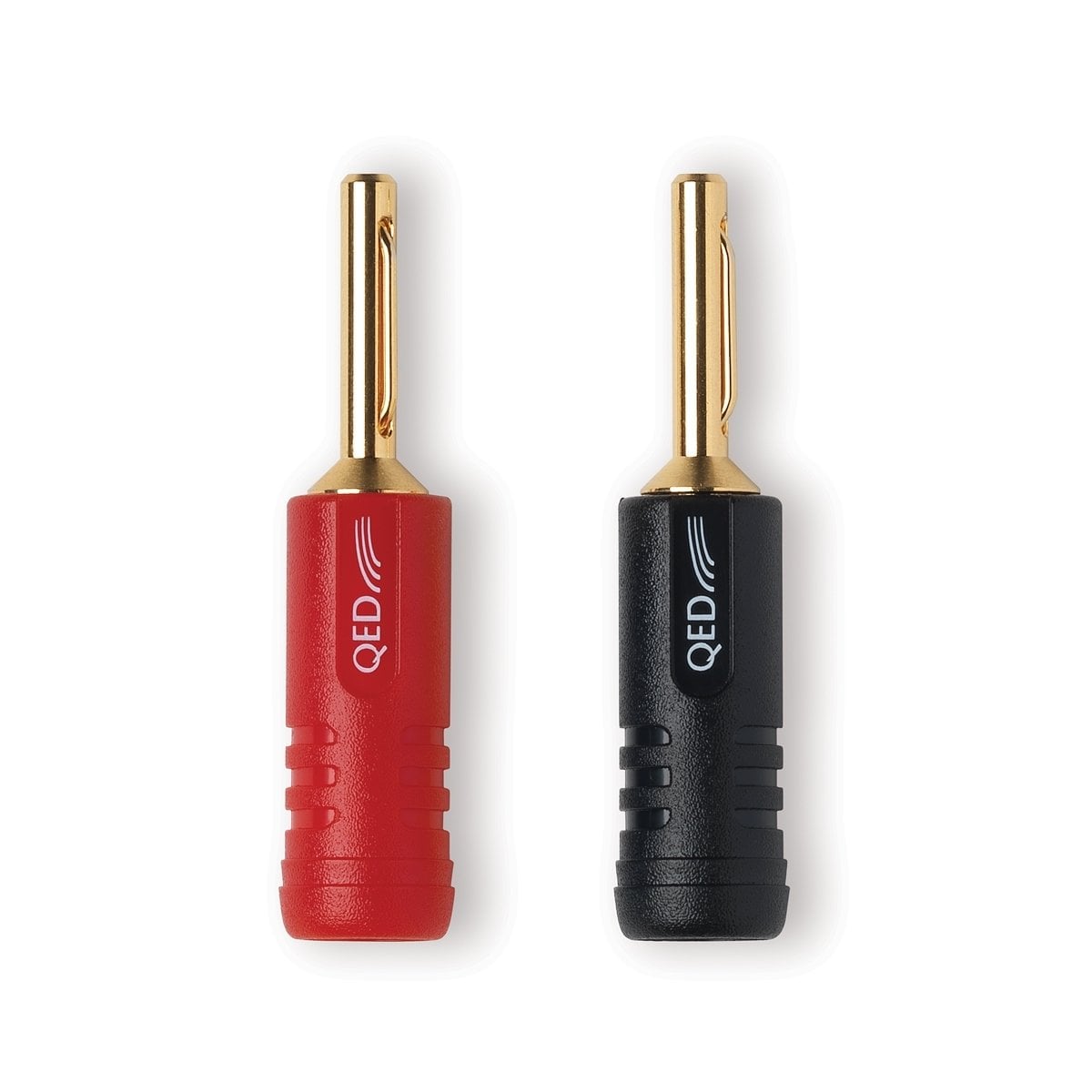

QE-1810 AIRLOC ABS 4MM BANANA / 1 Kırmızı + 1 Siyah

QE-1810 AIRLOC ABS 4MM BANANA / 1 Kırmızı + 1 Siyah

Markanın tüm ürünleri
725,00 TL
Kdv Dahil
241,67 TL den başlayan taksitlerle!!
Taksit Seçenekleri
Kategori
Banana Uç , Aksesuarlar
Marka
QED
Stok Kodu
QE1810
Garanti Süresi
24 Ay
Ürün Bilgisi
Yorumlar
Taksit Seçenekleri
Önerileriniz
Ürün Bilgisi

AIRLOC IS QED’S AWARD WINNING LOUDSPEAKER CABLE TERMINATION METHOD USING SPECIALIST EQUIPMENT.

Put simply, this is the best termination method to use with QED loudspeaker cables. The science  and engineering of loudspeaker cable doesn’t stop with the cable...



FEATURES AND BENEFITS

NEW STRENGTHENED PLUG

The new Forté plug pin section is designed to maximise contact area throughout the wide tolerance range encountered in 4mm amplifier and speaker sockets. Here, some are quite tight whereas others are loose, so the spring loaded Forté blade is designed to fit into smaller and larger sockets with equal insertion force.

This means that the contact area is maximised and the connection remains uniformly tight.

24K GOLD PLATED

Plugs are gold plated to eliminate oxidization, ensuring a life-long low resistance connection
24k Gold plated
High copper brass body
AirlocTM cold weld system
Fits 6mm and 8mm binding posts
Minimum cable size 0.75mm2
Maximum cable size 5.5mm2
Accepts entire QED cable range
Colour-coded ABS barrels
Available in red, black, yellow and blue



WHAT IS AIRLOC™?

Airloc™ is aform of cold weld system that can be used to permanently attach QED Forté™ banana plugs or spade terminals toour entire range of speaker cables.

One of the mainreasons for choosing a QED speaker cable is the superior d.c. resistancecharacteristics offered by our exclusive use of 99.999% oxygen free copperconductors. It seems a shame then to ruin all this attention to detail byneglecting the most vulnerable area of the speaker cable chain - that of thephysical interface between cable and amplifier or speaker terminals.

Seen under a microscope the surface of a typical copper strand is very rough and so using normal screw type terminals - as found on binding posts or cheap banana plugs - electrical contact is only made in a relatively small number of places. Add to this a layer of oxidation - which is inevitable if copper is exposed to the air for even a short time - and the combined resistance of the cable and its termination can creep back up to levels present in a more inferior cable.

By using a cold weld crimp type termination Airloc™ plugs squash the conductors and plug together to improve contact area and reduce resistance.





As can be seen in the graph below, by the time the full pressure has been applied the resistance of the joint has reached a minimum value.

Now, because all the air has been removed from the joint there will be no oxidisation of the contact surfaces so the low resistance will remain for the lifetime of the cable. During the cold weld process the cable and plug become one solid piece of metal.



Yorumlar
Bu ürüne ilk yorumu siz yapın!
Yorum Yaz
Taksit Seçenekleri
Önerileriniz
Bu ürünün fiyat bilgisi, resim, ürün açıklamalarında ve diğer konularda yetersiz gördüğünüz noktaları öneri formunu kullanarak tarafımıza iletebilirsiniz.
Görüş ve önerileriniz için teşekkür ederiz.
QE-1810 AIRLOC ABS 4MM BANANA / 1 Kırmızı + 1 Siyah Banana Uç kategorisindeki QED markalı QE-1810 AIRLOC ABS 4MM BANANA / 1 Kırmızı + 1 Siyah ürününü, kredi kartına vade farksız 6 taksit seçeneği ve ücretsiz kargo ile satın alabilirsiniz. QED Türkiye distribütörü forum audio dur. QED markası ses ve görüntü sistemlerinde kullanılan en iyi kablodur. RCA kablo, hoparlör kablosu, kulaklık kabloları, USB kablosu, HDMI kablo ve bir çok ürün çeşitleri. QED ingiliz menşeili dünyada bilinen en iyi ses ve görüntü kabloları üreten ve what hifi gibi bir çok kuruluştan 5 yıldız almış en iyi hi-fi kablolarıdır QE1810
QE-1810 AIRLOC ABS 4MM BANANA / 1 Kırmızı + 1 Siyah
